Applied code

IEEE802.3 (10Base-T, 10Base-FL)，IEEE802.3U (100Base-T, 100Base-FL)

Opto-electricity parameter

Distance

(Km)

0~30

>50

>100

Optical Fiber Module

Single module

Wavelength

(nm)

1310

1310

1310/1550

Receive sensibility

(dBm)

-38

Output power

(dBm)

>-25

>-8

>0

Connector

Electricity Port：RJ45 (MDI-X)                                               Optical port ：ST/PC or SC/PC

Environment

Work Temp：0~70℃                                                               Storage Temp：-10~85℃

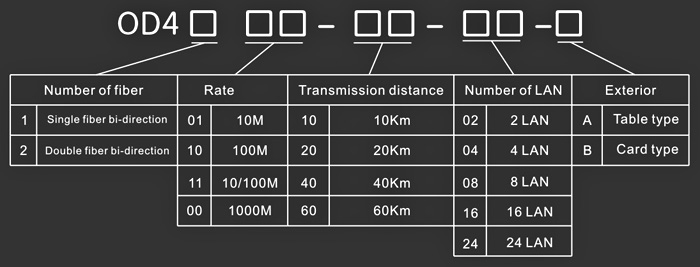

Mode

Specification

Speed

Structure

Distance

OD4211-20

Double fiber bi-direction

10/100M

Table or inserted

Single module ≥20Km

OD4211-40

Single module ≥40Km

OD4211-60

Single module ≥60Km

OD4211-80

Single module ≥80Km

OD4210-100

Single module ≥100Km

OD4210-120

Single module ≥120Km

OD4111-20

Single fiber bi-direction

10/100M

Table or inserted

Single module ≥20Km

OD4111-40

Single module ≥40Km

OD4211-60

Single module ≥60Km

OD4211-80

Single module ≥80Km
