HT8500AC(CATV wavelength)
HT8500AU(ITU wavelength adjustable)
Standard type Externally Modulated Optical Transmitter
(47~862MHz, CNR1≥53dB, SBS: 13, 16, 18dBm adj.)
|
|
|
|
|
|
| |
 Technical index |
| |
Performance |
Index |
Supplement |
Optic feature |
Operating wavelength |
(nm) |
1540~1563 |
HT8500AC |
ITU-TG.692 |
HT8500AU |
| Wavelength adjustable range |
(nm) |
±1.6 (±200GHz) |
HT8500AU |
| Wavelength adjustable mode |
|
±0.05nm stepping |
HT8500AU |
| Linewidth |
(MHz) |
≤1 |
FWHM(△λ) |
| Side mode suppression ratio |
(dB) |
≥45 |
SMSR |
| Equivalent noise intensity |
(dB/Hz) |
≤-160 |
RIN (20~1000MHz) |
| Output power |
(dBm) |
2×5 |
Optional 2 ×3, 2 ×6, 2 ×7, 2×9 |
| Return loss |
(dB) |
≥60 |
|
| optical fiber connector |
|
SC/APC |
Optional FC/APC, LC/APC |
RF feature |
Work bandwidth |
(MHz) |
47-862 |
47~1000, 47~1080 optional |
| Input level |
(dBmV) |
18~28 |
AGC |
| Flatness |
(dB) |
≤±0.75 |
47~862MHz |
≤±1.5 |
862~1000MHz (Optional) |
| Return loss |
(dB) |
>16 |
|
| Input impedance |
(Ω) |
75 |
|
| RF port |
|
F-Female |
|
Link feature |
Transmit channel |
|
PAL-D/60CH |
PAL-D/99CH |
|
| CNR1 |
(dB) |
≥53.0 |
≥51.5 |
Back to back |
| CNR2 |
(dB) |
≥51.5 |
≥50 |
50Km optical fiber, 0dBm receive |
| CTB |
(dB) |
≤-65 |
≤-65 |
|
| CSO |
(dB) |
≤-65 |
≤-65 |
|
| SBS restrain |
(dBm) |
13,16, 18 |
Adjustable |
General feature |
SNMP network management interface |
|
RJ45 |
|
| Communication interface |
|
RS232 |
|
| Power supply |
(VAC) |
90~265 |
50/60Hz |
(VDC) |
-48 |
30~72 |
| Power Consume |
(W) |
≤50 |
Single power works |
| Work temp. |
(℃) |
0~50 |
Machine temp. control automatically |
| Storage temp. |
(℃) |
-40~85 |
|
| Operating relative humidity |
(%) |
5~95 |
|
| Size |
(") |
19×14.5×1.75 |
(W)x(D)x(H) |
|
|
| Product series |
| |
Model |
Output Power(dBm) |
Operating wavelength(nm) |
SBS Restrain(dBm) |
System index(59 routes PAL-D) |
CNR1 |
CNR2 |
CTB |
CSO |
HT8523AC |
Dual fiber 2×3 |
1540~1563 |
13, 16, 18
Adjustable |
≥53 |
≥50.5 |
≤-65 |
≤-65 |
HT8525AC |
Dual fiber 2 ×5 |
≥53 |
≥51 |
≤-65 |
≤-65 |
HT8526AC |
Dual fiber 2×6 |
≥53 |
≥51.5 |
≤-65 |
≤-65 |
HT8527AC |
Dual fiber 2 ×7 |
≥53 |
≥51.5 |
≤-65 |
≤-65 |
HT8529AC |
Dual fiber 2×8.5 |
≥53 |
≥51.5 |
≤-65 |
≤-65 |
HT8523AU |
Dual fiber 2 ×3 |
1528~1563nm
ITU wavelength adjustable |
≥53 |
≥50.5 |
≤-65 |
≤-65 |
HT8525AU |
Dual fiber 2 ×5 |
≥53 |
≥51.5 |
≤-65 |
≤-65 |
HT8526AU |
Dual fiber 2 ×6 |
≥53 |
≥51.5 |
≤-65 |
≤-65 |
HT8527AU |
Dual fiber 2 ×7 |
≥53 |
≥51.5 |
≤-65 |
≤-65 |
HT8529AU |
Dual fiber 2×8.5 |
≥53 |
≥51.5 |
≤-65 |
≤-65 |
Test condition: CNR1: Tx to Rx, 0dBm receiving.
CNR2: 13dBm EDFA (NF4.5~5.5dB), 50km fiber, 0dBm receiving.
|
|
| |

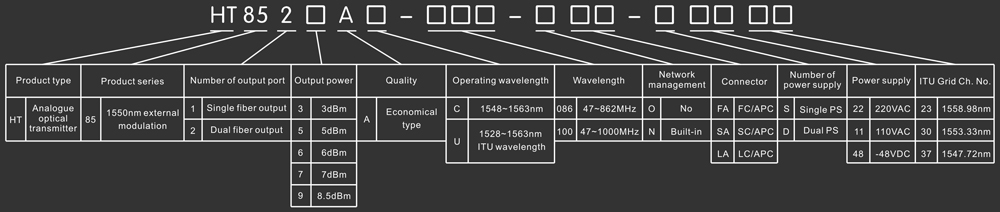

Model explanation |
|
| |
|
|
| Related product |
| |
| |
| Similar products in the field |
| |
 BKtel: BK-ES10XLc-70/165 EMCORE: 3988-H0 |
|
| |
|
|
|
|
|
 |
