DCM-G.655-C-Fxx Dispersion Compensation Optical Fiber Module, DCM

HANGZHOU HUATAI OPTIC TECH. CO., LTD
	Product Classification

DCM-G.655-C-Fxx
Dispersion Compensation Optical Fiber Module

Technical index

Feature		Index			Supplement
Feature		Min.	Typ.	Max.	Supplement
Working wavelength	(nm)	1528		1565
Compensated Optical Fiber Length	(Km)		10		F10
			20		F20
			40		F40
			60		F60
			80		F80
			100		F100
			120		F120
			160		F160
			200		F200
Dispersion Value (1545nm)	(ps/nm)	-33	37	41	F10
		-69	75	81	F20
		-138	150	162	F40
		-202	220	242	F60
		-280	300	320	F80
		-350	370	390	F100
		-420	450	480	F120
		-560	600	640	F160
		-700	750	800	F200
Insert Ioss	(dB)			4.7	F10
				4.7	F20
				4.7	F40
				5.5	F60
				5.9	F80
				6.5	F100
				7.1	F120
				8.3	F160
				9.5	F200
Polarized Mode Dispersion (PMD)	(ps)		0.4	0.5	F10
			0.4	0.5	F20
			0.4	0.5	F40
			0.5	0.6	F60
			0.6	0.7	F80
			0.7	0.8	F100
			0.8	0.9	F120
			0.9	1.0	F160
			1.0	1.1	F200
RSD	(nm-1)	0.022+/-20%
Optical fiber connector		LC/UPC,SC/ACP,MU/UPC
Return Loss	(dB)			-45
Work Temp	( ℃ )	-5		+70
Store Temp	( ℃ )	-40		+85
Size (W)×(D)×(H)	( " )	19×11×1.75
Size (W)×(D)×(H)	( mm )	483×279×44

Product series

Model	Compensate optical fiber length (Km)	Dispersion Value (ps/nm)	Polarize mode dispersion(ps)	Insert loss (dB)
DCM-G.655-C-F10	10	37	0.5	4.7
DCM-G.655-C-F20	20	75	0.5	4.7
DCM-G.655-C-F30	40	150	0.5	4.7
DCM-G.655-C-F40	60	220	0.6	5.5
DCM-G.655-C-F50	80	300	0.7	5.9
DCM-G.655-C-F60	100	370	0.8	6.5
DCM-G.655-C-F70	120	450	0.9	7.1
DCM-G.655-C-F80	160	600	1.0	8.3
DCM-G.655-C-F90	200	750	1.1	9.5

Note: orange for conventional products.

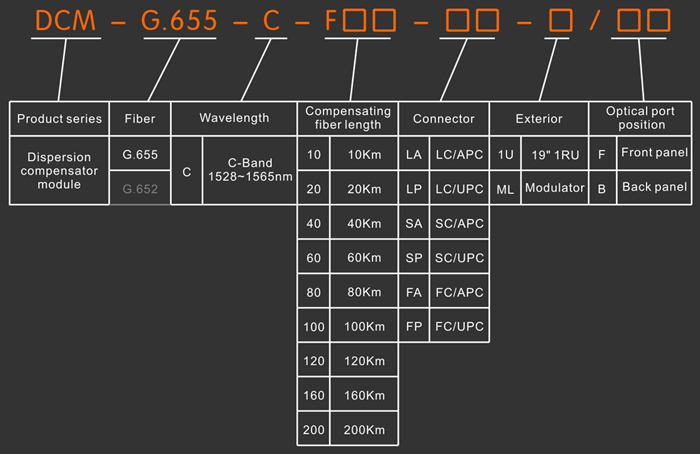

Model explanation
