HRS-26S/P
950~2600MHz
Satellite L-Band PIN optical receiver
  HRS-26S/P Product Photos Download Data Sheet


Product description
Huatai HRS-26S/P optical receiver, adopting high-sensitivity PIN detector, receiving sensitivity is -22dBm, typical value: -13dBm. It can receive analogue and digital signal on satellite antenna LNB with the frequency of 950~2600MHz, It can be compatible with any FTTx PON to realize combination of Direct Broadcasting Satellite (DBS)with Internet and FTTH, it can also be used for L-Band uplink/downlink of satellite communication.
HRS-26S/P-113-00: adopting 1U 19” standard casing, the working parameters of the unit are controlled by micro-processor. LCD on the front panel can display the working status and failure and diagnosis. Standard RS232 communication interface, SNMP function. It is suitable for project application.
HRS-26S/P-213-00: Desktop, Minimum exterior structure in the area.
HRS-26S/P-313-00: Wall-mounted.
HRS-26S/P-913-00: Rainproof type, suitable for field installation.
HRS-26S/P-213-WD: Desktop, suitable for FTTx PON. Build-in WD1543, un-seamed connection with ONU in EPON, GPON system.
HRS-26S/P-313-WD: Wall-mounted, suitable for FTTx PON. Build-in WD1543, un-seamed connection with ONU in EPON, GPON system.
Product feature
PIN detector, -22dBm receiving sensitivity, typical value: -13dBm.
950~2600Mhz high bandwidth, suitable for SAT-IF application.
Receiving all L-BAND satellite signal of LNB over single fiber.
It can be compatible with any FTTx PON technology.
Different exterior structures. Suitable for FTTH, FTTP, FTTB, FTTC.
Excellent P/P ratio.
Main application
Satellite L-Band optical fiber building distribution system
Optical fiber distribution system for ocean going vessels
Satellite L-Band up / down fiber optic link
Product Series Comparison Table
Optical receiver electrical schematic diagram
HRS-26S/P-口13-00

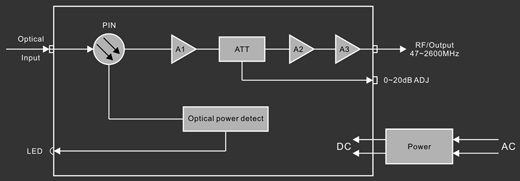

SAT-IF optical recevier - Circuit Diagram
HRS-26D/P-口13-WD
SAT-IF optical recevier - Circuit Diagram
Application of HRS-26S/P in FTTx PON
