DWDA-1000 Wavelength Division Multiplexer, WDM

HANGZHOU HUATAI OPTIC TECH. CO., LTD
	Product Classification

DWDA-1000 (100GHz)
VOA DWDM with EDFA
With VOA, EDFA Dense Wavelength Division Multiplexer

WDM Multi-wavelength Multiplexing System

DWDA-1000

Data Sheet

Technical index

Performance				Index			Supplement
Performance				Min.	Typ.	Max.	Supplement
DWDM feature	Operrating wavelength		(nm)	1528		1564
	Center wavelength		(nm)		ITU-T
	Center wavelength accuracy		(nm)	-0.03		+0.03
	Channel spacing		(GHz)		100		DWDA-1000
	Channel spacing		(GHz)		200		DWDA-2000
	Channel pass band (@-0.5dB bandwidth)		(nm)	0.22			DWDA-1000
	Channel pass band (@-0.5dB bandwidth)		(nm)	0.5			DWDA-2000
	In-band ripple		(dB)			0.5
	Insertion loss		(dB)	4		8
	Insertion loss disuniformity		(dB)			1.5
	Isolation	Adjacent	(dB)	30
	Isolation	Non-adjacent	(dB)	40
	Polarization dependence loss		(dB)			0.15
	Polarization mode dispersion		(ps)			0.1
VOA feature	Resolution		(dB)			0.1
	Insertion loss		(dB)		0.7	1.2
	Dynamic range		(dB)	20
	Dynamic range		(dB)	30
	VOA setting accuracy		(dB)	-0.2		+0.2
	Optical power setting accuracy		(dB)	-0.1		+0.1
	Wavelength dependence ripple		(dB)			0.2
	Polarization dependence loss		(dB)			0.2
	Polarization mode dispersion		(ps)			0.1
EDFA feature	Operating wavelength		(nm)	1528		1564
	Input power	BA	(dBm)	-13		+12
		LA		-25		+7
		PA、MSA		-35		+3
	Output power		(dBm)	13		25
	Noise figure		(dB)	3.8		5.8	Pin=0dBm
	Gain flatness		(dB)	-0.5		+0.5
	Polarization dependence loss		(dB)			0.3
	Polarization mode dispersion		(ps)			0.3
	Input/output isolation		(dB)	30
	Pump Optical leakage		(dBm)			-30
	Return loss		(dB)	40			UPC
	Return loss		(dB)	55			APC
General feature	SNMP network management interface			RJ45
	Serial interface			RS232
	Power supply		(V)	90		265
	Power supply		(V)	30		72
	Power consume		(W)			50
	Operating temp.		(℃)	0		65
	Storage temp.		(℃)	-40		80
	Relative humidity		(%)	5		95
	Size (W)×(D)×(H)			19×14.5×1.75 ( " ) 483×368×44 ( mm )			1RU (19")

Product series

Model	Channel spacing	Number of channels	EDFA type	Output power	VOA dynamic range
DWDA-1004MU-116-20	100GHz	4CH	BA	16dBm	20dB
DWDA-1008MU-119-20		8CH		19dBm
DWDA-1016MU-122-20		16CH		22dBm
DWDA-1032MU-125-20		32CH		25dBm
DWDA-1004DE-314-20	100GHz	4CH	PA	14dBm	20dB
DWDA-1008DE-314-20		8CH		14dBm
DWDA-1016DE-314-20		16CH		14dBm
DWDA-1032DE-314-20		32CH		14dBm
DWDA-1004DM1-216-20	100GHz	4CH	LA	16dBm	20dB
DWDA-1008DM1-219-20		8CH		19dBm
DWDA-1016DM1-222-20		16CH		22dBm
DWDA-1032DM1-225-20		32CH		25dBm
DWDA-1004AD1-216-20	100GHz	4CH	LA	16dBm	20dB
DWDA-1008AD1-219-20		8CH		19dBm
DWDA-1016DM1-222-20		16CH		22dBm
DWDA-1032DM1-225-20		32CH		25dBm
DWDA-1008DM2-719-20	100GHz	8CH	MSA	19dBm	20dB
DWDA-1016DM2-722-20		16CH		22dBm
DWDA-1032DM2-725-20		32CH		25dBm
DWDA-1008AD2-719-20	100GHz	8CH	MSA	19dBm	20dB
DWDA-1016AD2-722-20		16CH		22dBm
DWDA-1032AD2-725-20		32CH		25dBm

Remarks: 1. Channel spacing optional 200GHz (DWDA-2000).

2. Attenuate dynamic range can choose≥30dB.

3. EDFA type and output power can be user-defined.

4. Diagram mode can be chose by users.

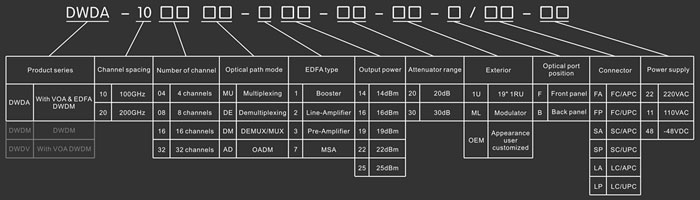

Model explanation

The parts marked in gray color belongs to other varieties of this product series, the options marked in gray color in this products series can not be specified.
