WD1543
1550 & 1310/1490nm MWDM
  WD1543 Product Photos Download Data Sheet


Product description
WD1543 WDM is based on mature thin film filtering tech, with wide bandwidth, flatness, low insertion loss and high isolation. It is mainly applied to FTTx PON network to achieve the combination and separation of the 1550nm (CATV) and 1310/1490nm (data).
Product feature
Low insertion loss
High channel isolation
High band flatness
High stability and reliability
Main application
FTTx PON (EPON, GPON)
Triple-play
Exterior dimension

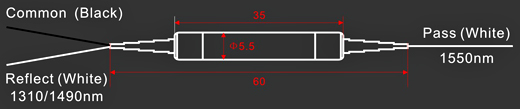

S0 exterior
WDM - S0 exterior
M2 exterior
WDM - M2 exterior
The application of WD1543 in FTTx PON network
WD1543 WDM - application in FTTx PON network
