RFoG1000
FTTH RFoG
Burst mode Bi-directional Optical Receiver
  RFoG1000 Product Photos Download Data Sheet


Product description
RFoG1000 series RFoG ONU, adopts Passive Optical distribution Network (PON) to realize bi-directional, interactive RF business. In FTTH network, it serves to transmission layer of RF video, DAVIC, DOCSIS, extending the optical network to home or building without the need of adjacent HFC optical node. Saving lots of RF amplifier, thus, it can improve the quality and stability of network operation.
RFoG1000 uplink channels adopts burst mode, which can largely reduce the Funneling noise at uplink channels and improve stability of network operation.
RFoG1600 uplink adopts 1610nm wavelength, RFoG1900 uplink adopts 1590nm wavelength. Compatible with any FTTx PON technique, realize Triple-play. Built-in CWDM is optional, through 1310nm/1490nm and 1610nm (or 1590nm).
RFoG1300 uplink adopts 1310nm wavelength, RFoG1500 uplink adopts 1550nm wavelength which can fully substitute the traditional HFC networks, saving lots of RF amplifiers, thus, it can improve the quality and stability of network operation.
Product feature
Uplink channels adopts burst mode.
Take use of RF and DOCSIS technique configuration optical distribution network.
Using single-fiber with bi-direction mode that could reduce the fiber consumption.
No need of HFC optical node, reduce the cost of network maintenance and operation.
RFoG1600&RFoG1900: Compatible with any FTTx PON technique, realize Triple-play.
RFoG1600&RFoG1900: Built-in CWDM is optional, through 1310nm /1490nm and 1610nm (or 1590nm).
Support the universal HFC STB, CM and Head-end equipment.
Transparent return path channel (no limitation on protocol and modulation mode).
Local feeding or remote feeding can be done through 75Ω coaxial cable
Aluminum die-casting housing, favorable for heat dispersion
Main application
256 RFoG
FTTH (FTTx PON)

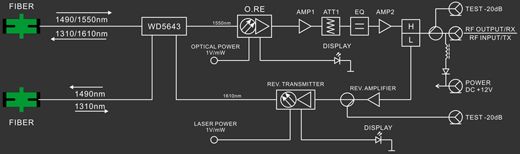

Electrical Block Diagram
RFoG1300
RFoG1500
RFoG1600 & RFoG1900
Remark: RFoG1600: TX operating wavelength: 1610nm
RFoG1900: TX operating wavelength: 1590nm
Network application
RFoG1300
RFoG1500
RFoG1600 & RFoG1900
Remark: RFoG1600: TX operating wavelength: 1610nm
RFoG1900: TX operating wavelength: 1590nm
