1550nm High Power Fiber Optical Splitter
  HPFS-1550 Product Photos Download Data Sheet
Products High Power Optical Splitter HPFS-1550 Data Sheet

Technical index

Performance
Index
Supplement
Min.
Typ.
Max.
Operation Wavelength
(mn)
1530

1565
HPFS-1550
Ratio
(1xN)

1×2

HPFS-1550-口口-1×2

1×3

HPFS-1550-口口-1×3

1×4

HPFS-1550-口口-1×4

1×5

HPFS-1550-口口-1×5
Pass Power

(W)


10
HPFS-1550-10


20
HPFS-1550-20


50
HPFS-1550-50

Insertion Loss

(dB)

3.1
3.2
1×2

4.85
5.1
1×3

6.3
6.5
1×4

7.2
7.4
1×5
Uniformity
(dB)

0.06
0.1
1×2

1.00
0.15
1×3

0.15
0.20
1×4

0.35
0.4
1×5
Polarization Dependent Loss
(dB)


0.02
1×2


0.04
1×3


0.05
1×4


0.06
1×5
Directivity
(dB)
55



Fiber length
(m)

1.0


Fiber type

SMF-28.280µm
bare fiber
Operating Temp
(℃)
-40

80

Storage Temp
(℃)
-40

85

Size(L)×(W)×(H)

2.2×0.47×0.31 ( " )
55×12×8 ( mm )


Product series
Model
operating wavelength
Max.Pass Power
Ratio
Insertion Loss
Uniformity
HPFS-1550-10 -1×2
1550nm
10W
(40dBm)
1 × 2
≤3.2dB
≤0.1dB
HPFS-1550-10 -1×3
1 × 3
≤5.1dB
≤0.15dB
HPFS-1550-10 -1×4
1 × 4
≤6.4dB
≤0.2dB
HPFS-1550-10 -1×5
1 × 5
≤7.6dB
≤0.3dB
HPFS-1550-20 -1 × 2
1550nm
 20W
(43dBm)
1 × 2
≤3.2dB
≤0.1dB
HPFS-1550-20 -1 × 3
1 × 3
≤5.1dB
≤0.15dB
HPFS-1550-20 -1 × 4
1 × 4
≤6.4dB
≤0.2dB
HPFS-1550-20 -1 × 5
1 × 5
≤7.6dB
≤0.3dB
HPFS-1550-50 -1×2
1550nm
50W
(47dBm)
1 × 2
≤3.2dB
≤0.1dB
HPFS-1550-50 -1×3
1 × 3
≤5.1dB
≤0.15dB
HPFS-1550-50 -1×4
1 × 4
≤6.4dB
≤0.2dB
HPFS-1550-50 -1×5
1 × 5
≤7.6dB
≤0.3dB

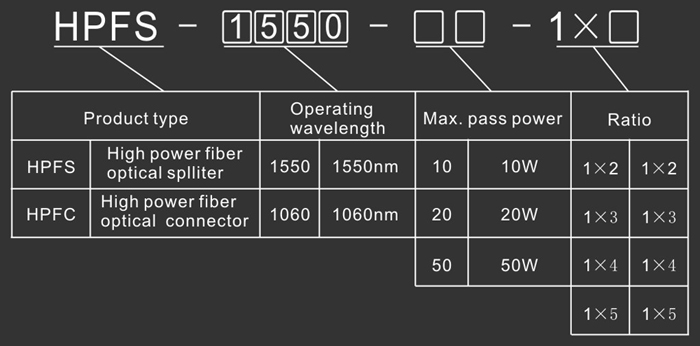

Model explanation
