MT50 (40KHz~20GHz)
Microwave Wideband Direct Modulated DFB Transmitters (without RF Amp) |
|
|
|
|
|
| |
 Technical index |
| |
Performance |
Min. |
Typ. |
Max. |
Supplement |
Optical feature |
Operating wavelength range |
(nm) |
1290 |
1310 |
1320 |
B type: 1310nm |
1530 |
|
1565 |
C type: C-Band |
| Optical output power |
(dBm) |
6.0 |
|
|
|
| Side mode suppression ratio |
(dB) |
35 |
45 |
|
|
| Optical isolation |
(dB) |
30 |
|
|
|
| Extinction ratio |
(dB) |
8.2 |
|
|
|
| Rise time (10%~90%) |
(ps) |
|
25 |
35 |
|
| Fall time (10%~90%) |
(ps) |
|
35 |
45 |
|
| SBS suppression |
(dBm) |
|
|
17.0 |
|
| Optical link budget loss |
(dB) |
|
24 |
|
PIN (MR22) |
| |
32 |
|
APD (MR12) |
| Optical return loss |
(dB) |
40 |
|
|
|
| Optical connector |
|
SC/APC |
Option FC/APC, LC/APC |
RF feature |
High frequency (cut-off -3dB) |
(GHz) |
6.0 |
|
|
MT50-06 |
10.0 |
|
|
MT50-10 |
13.0 |
|
|
MT50-13 |
15.0 |
|
|
MT50-15 |
18.0 |
|
|
MT50-18 |
20.0 |
|
|
MT50-20 |
| -3dB Low frequency |
(KHz) |
|
40 |
|
|
| In-band ripple |
(dB) |
|
|
±1.0 |
≤13GHz |
| |
|
±1.5 |
15~18GHz |
| |
|
±2.0 |
20GHz |
| RF return loss |
(dB) |
10 |
|
|
≤10GHz |
8 |
|
|
13~15GHz |
6 |
|
|
18~20GHz |
| RF input level |
(dBmV) |
|
|
12 |
50Ω |
| RF input impedance |
(Ω) |
|
50 |
|
|
| Built-in RF coupling |
|
|
DC |
|
|
| RF output connector |
|
GPO or K-connector 1) |
|
General feature |
Communication interface |
|
RS232 |
|
| SNMP interface |
|
RJ45 |
Network management |
| Power supply |
220VAC |
(V) |
90 |
220 |
265 |
1RU, 3RU, 2D |
-48VDC |
-30 |
-48 |
-72 |
1RU, 3RU |
+12VDC |
+11 |
+12 |
+12.5 |
MX |
| Power consume |
(W) |
|
|
8 |
A single plug-in or module |
| Operating temp. |
(℃) |
-10 |
|
+65 |
|
| Storage temp. |
(℃) |
-40 |
|
+85 |
|
| Relative humidity |
(%) |
5 |
|
95 |
|
| Size |
1U |
|
19×11.0×1.75 ( " )
483×279×44 ( mm ) |
19" stander |
3U |
|
19×14.5×5.25 ( " )
483×368×133 ( mm ) |
2D |
|
12.4×13.0×3.5 ( " )
315×330×89 ( mm ) |
Desk-top |
M1 |
|
5.7×3×1.1 ( " )
145×75×28 ( mm ) |
with RS232 |
M2 |
|
2.8×1.77×0.63 ( " )
70×45×16 ( mm ) |
Without RS232 |
Remark: 1) K-connector is a trademark of Anritsu Corporation, compatible with SMA.
|
|
| Product series |
| |
Model number |
Highest frequency |
Operation wavelength |
Optical output power |
Laser type |
Output feature |
Structure |
Optical connector |
MT50-06-B06-G/DC |
6.0GHz |
1310nm (1290~ 1320nm) |
≥6dBm |
DML (DM-DFB laser) |
GPO connector DC coupling, Without RF Amp |
1U, 3U, 2D, MX, 3P optional |
SC/APC, optional FC/APC, LC/APC |
MT50-10-B06-G/DC |
10.0GHz |
MT50-13-B06-G/DC |
13.0GHz |
MT50-15-B06-G/DC |
15.0GHz |
MT50-18-B06-G/DC |
18.0GHz |
MT50-20-B06-G/DC |
20.0GHz |
MT50-06-C06-K/DC |
6.0GHz |
1550nm (1530~ 1565nm) |
≥6dBm |
DML (DM-DFB laser) |
K-connector DC coupling, Without RF Amp |
1U, 3U, 2D, MX, 3P optional |
SC/APC, optional FC/APC, LC/APC |
MT50-10-C06-K/DC |
10.0GHz |
MT50-13-C06-K/DC |
13.0GHz |
MT50-15-C06-K/DC |
15.0GHz |
MT50-18-C06-K/DC |
18.0GHz |
MT50-20-C06-K/DC |
20.0GHz |
Remark: please refer to model explanation.
|
|

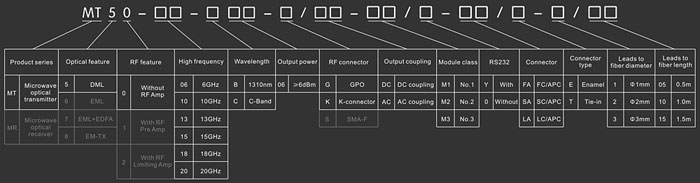

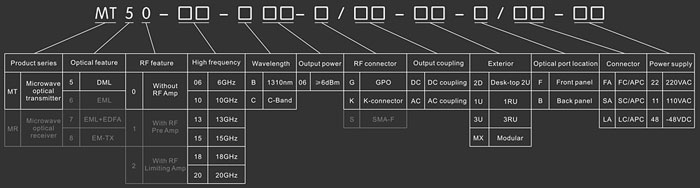

Model explanation |
| |
