ASE5000
C-Band ASE Light Source
  ASE5000 Product Photos Download Data Sheet

Technical index

Performance
Index
Supplement
Min.
Typ.
Max.
Operating wavelength
(nm)
1528

1564
C-Band
Output power
(dBm)
13


ASE5013
17


ASE5017
20


ASE5020
10


ASE5110
13


ASE5113
16


ASE5116
Output power adjustable range
(dB)
-6

0

Output power adjust mode
(dB)
In steps ±0.1

Spectrum flatness
(dB)
No provision
ASE50口口
-0.5

+0.5
ASE51口口
-1.0

+1.0
ASE5200
-2.0

+2.0
ASE5400
Spectrum density
(dBm/nm)
-16



Output power stability
(dB)
-0.005

+0.005
15 Minutes
-0.01

+0.01
8 hours
Fiber type

SMF-28 with 900μm loose tube

Optical connector

FC/PC , FC/APC
SC available
SNMP interface

RJ45

Communicate interface

RS232

Power supply
(V)
90

265
220VAC
30

72
-48VDC
Power consume
(W)


50

Work temp.
(℃)
0

70

Storage temp.
(℃)
-40

+85

Size
11×13×3.5 ( " )
279×330×89 ( mm )
2D

3.5×2.8×0.7 ( " )
90×70×18 ( mm )
M1

4.53×3.5×0.7 ( " )
115×89×18 ( mm )
M2

7.87×0.98×5 ( " )
200×25×128( mm )
3J
Product series

Model number
Working wavelength
Ouput power
Flatness
Optical
connector
ASE5013-2D-FA
C-Band
1528~1565nm
13dBm
No GFF
FC/APC
ASE5016-2D-FA
16dBm
ASE5020-2D-FA
20dBm
ASE5110-2D-FA
C-Band
1528~1565nm
10dBm
±0.5
FC/APC
ASE5113-2D-FA
13dBm
ASE5116-2D-FA
16dBm
ASE5210-2D-FA
C-Band
1528~1565nm
10dBm
±1.0
FC/APC
ASE5213-2D-FA
13dBm
ASE5216-2D-FA
16dBm
ASE5410-2D-FA
C-Band
1528~1565nm
10dBm
±2.0
FC/APC
ASE5413-2D-FA
13dBm
ASE5416-2D-FA
16dBm

Model explanation

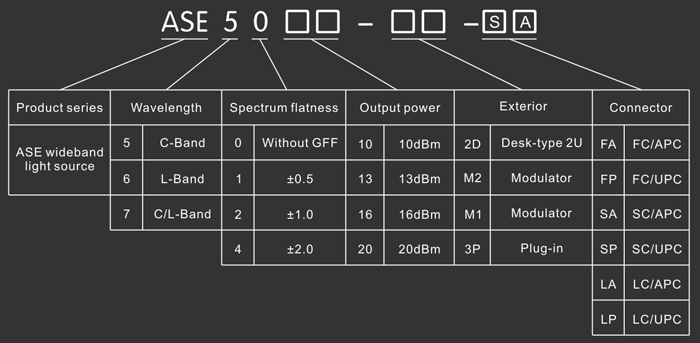

  ASE light Source - Model Explanation
