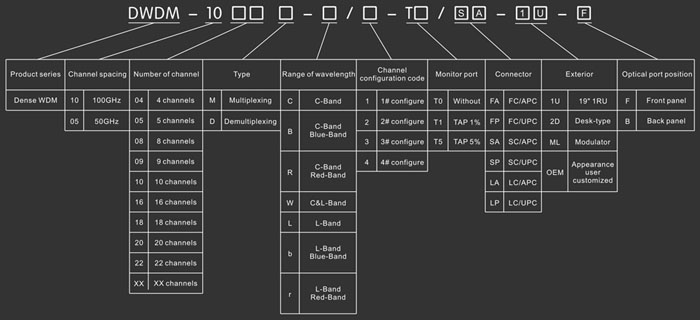

Performance |
Index |
Supplement |
| Operating wavelength range |
C-Band |
(nm) |
1528.77~1563.86 |
|
L-Band |
1569.59~1604.03 |
|
| Operating center wavelength |
(nm) |
ITU Grid 100GHz |
|
| Center wavelength accuracy |
(nm) |
±0.03 |
|
| Channel spacing |
(GHz) |
100 |
|
| Channel passband (@-0.5dB bandwidth) |
(nm) |
ITU±0.11 |
|
| Insertion loss over passband |
(dB) |
≤3.0 |
1008 |
≤5.2 |
1016 |
≤10.0 |
1032 |
| Channel ripple |
(dB) |
≤0.5 |
|
| Isolation |
Adjacent |
(dB) |
≥25 |
|
Non-adjacent |
≥35 |
|
| Polarization dependent loss |
(dB) |
≤0.15 |
|
| Polarization mode dispersion |
(ps) |
≤0.10 |
|
| Directivity |
(dB) |
≥50 |
|
| Return loss |
(dB) |
≥50 |
|
| Power handling |
(mW) |
≥500 |
|
| Connector type |
|
No |
|
| Fiber length |
(m) |
≥1.0 |
|
| Fiber type |
|
SMF-28e with 900μm loose tube |
|
| Operating temperature |
(℃) |
0~+70 |
|
| Storage temperature |
(℃) |
-40~+85 |
|
| Dimensions |
Moduletor |
|
4.7×3.15×0.5 ( " )
120×80×12 ( mm ) |
1008, 1016 |
| |
5.59×4.5×0.6 ( " )
142×115×14.5 ( mm ) |
1032 |
Stander |
1U |
|
19×10.7×1.75 ( " )
483×272×44 ( mm ) |
|
2U |
|
19×10.7×3.5 ( " )
483×272×89 ( mm ) |
|
Technical index
Common C/Red-Band 100GHz DWDM
