EATV5400x-FM05     (125×150×35mm)
High Power Multi-ports Output
CATV FTTP EYDFA Module
  EATV5400x-FM05 Product Photos Download Data Sheet


Product description
Huatai EATV5400 series is a low noise, high performance, high power multi-ports EYDFA module, which is specially designed for CATV system. It offers a flexible and low-cost FTTP solution for CATV large area coverage of metropolises and medium-sized cities.
GM is Gain Block Module, without electronic control circuit.
FM is Full function Module which is with electronic control circuit.
EATV5400D series adopts with Pre-amplifier , and the pre-amplifier adopts low noise EDFA, output cascade adopts high power EYDFA. When input optical power Pin=0dBm, the noise figure of unit is: Typ ≤4.5dB, Max ≤5.0dB.
EATV5400S series adopts without Pre-amplifier high power EYDFA. In order to make sure the good noise figure, the input optical power should be >15dBm. distance.
EATV5400x-FM05S is a full function module, adopts industry standard form factor 125×150×35mm. Total output power≤37dBm, and output optical ports ≥4 .
.When use this module, customers should add heat sink and forced air –cooling, to ensure high reliability and long life of the module.
Product feature
Industry Standard Form Factor (125×150×35mm)
Advanced electronic control circuit
Perfect optic feature
The integrated low-power design
APC, ACC work mode
The standard RS232 communication interface
Low noise figure (Typ≤4.5dB, Max≤5.0dBPin=0dBm, EATV5400D )
EATV5400D (with Pre-amplifier ), EATV5400S (without Pre-amplifier ) optional
Output power adjustable
Total output power 27~37dBm optional
Output optical ports:4~64 optional
Excellent P/P ratio
Main application
AM CATV
Digital CATV
DBS
FTTx PON

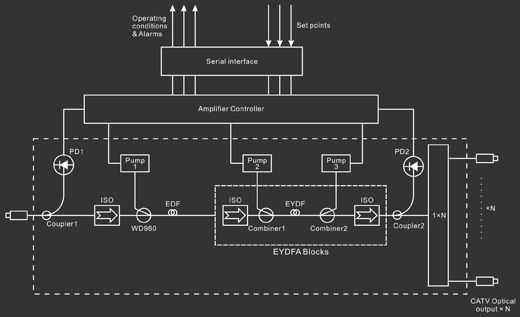

Functional diagram
EATV5400D-FM05
EATV5400S-FM05

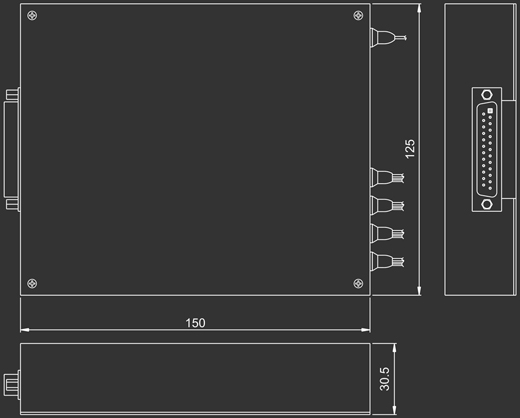

Dimensions
