Product description
Huatai H1228, the operating bandwidth of 47~ 1200MHz, is a low power, high performance, cost-effective triple play, FTTH CATV optical receiver, Whether used in analog television or digital television. Products with high sensitivity optical receiver tube and Huatai special low noise matching circuit. Receiving at high optical power can be adjusted by PAD level, played limiting output, so H1228 within a large dynamic range of the received optical power of +2 dBm ~-21dBm, have excellent characteristics.
H1228 for Analog TV, in Pin =-10dBm when, Vo≥ 75.7dBμV, CNR≥ 45.3dB.
H1228 for Digital TV, in Pin =-16dBm when, Vo≥ 67.2dBμV, MER≥ 36.1dB.
H1228 for Digital TV, in Pin =-20dBm when, Vo≥ 58.8dBμV, MER≥ 30dB.
Triple play, fiber to the home, using theH1228 can save a lot of optical fiber amplifier power resources. For operators, can greatly reduce the cost of building the network.:

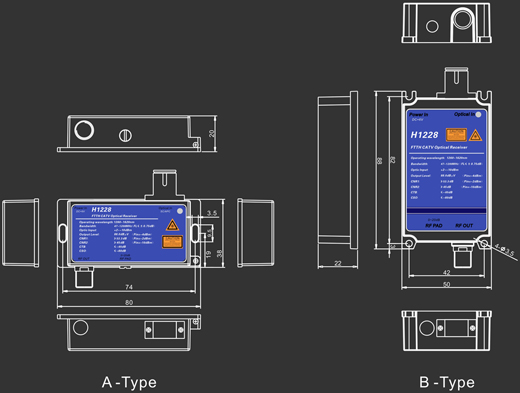

H1228 optical port mode and form of the following three selection:
H1228       : CATV operating in 1260~1620nm wavelength. A-Type
H1228/WF: Build-in 1310/1490 filter, CATV operating wavelength 1550nm.A-Type
H1228/WD: Build-in CWDM,CATV operating wavelength 1550nm, pass
wavelength 1310/1490nm, ( Link EPON、GPON ONU ).B-Type
Product feature
Extra-low noise(3.8% modulate, -10dBm receive, CNR ≥ 45.3dB)
Wide dynamic receiving optical power range: within Pin=-16, MER≥36.1dB
Applicable GPON, EPON, compatible with any FTTx PON technology
Can save a large number of optical power resource, greatly reduce the
network configuration cost
Within 47~1200MHz bandwidth, all with excellent flatness feature ( FL≤±1.0dB )
Metal case, offer safeguard for optoelectronic sensitive devices
High output level, can be used by many users
Low power consume, high performance, high cost performance
Main application
Integration of three networks
Status indicator
Red :                         > 0dBm
Green :                    0 ~ -7dBm
Orange :                  -7 ~ -10dBm
Red :                       < -10dBm
Note: Users can set the order request
CNR, MER Degradattion table
