H9222L
H9222L/WD, H9222L/WF
47~862MHz
FTTH Digital TV Two Output Low Optical Receiver
  H9222L Product Photos Download Data Sheet


Product description
Huatai H9222L, operating bandwidth of 47 ~ 862MHz, is a suitable digital television FTTH applications, ultra-low optical receiver, Whether used in analog television or digital television. Receiving at high optical power can be adjusted by PAD level, played limiting output, so H9222L within a large dynamic range of the received optical power of +2 dBm ~-20dBm, have excellent characteristics.
H9222L for Analog TV, in Pin =-10dBm when, Vo ≥ 68.0dBμV, CNR ≥ 45.2dB.
H9222L for Digital TV, in Pin =-15dBm when, Vo ≥ 66.0dBμV, MER ≥ 36.2dB.
H9222L for Digital TV, in Pin =-20dBm when, Vo ≥ 55.7dBμV, MER ≥ 28.1dB.
Digital TV FTTH applications, the H9222L can save a lot of optical fiber amplifier power resources. For operators, can greatly reduce the cost of building the network. Suitable for rural power digital TV, FTTH, triple play of wide application.
H9222L optical port mode of the following three selection:
H9222L        : operating wavelength 1260~1620nm.
H9222L/WD: built-in CWDM, suitable for single-fiber triple wavelength system, CATV
operating wavelength 1550nm, pass wavelength 1310/1490nm, can
conveniently connect the ONU of EPON, GPON.
H9222L/WF: built-in 1310/1490nm filter, suitable for single-fiber triple wavelength
system CATV operating wavelength 1550nm.
Product feature
Extra-low noise(3.8% modulate, -10dBm receive, CNR ≥ 45dB)
Wide dynamic receiving optical power range: within Pin=-15, MER≥36.2dB
Applicable GPON, EPON, compatible with any FTTx PON technology
Can save a large number of optical power resource, greatly reduce the network
configuration cost
Within 47~862MHz bandwidth, all with excellent flatness feature (FL≤±0.75dB)
Metal case, offer safeguard for optoelectronic sensitive devices
Interface on the same side, easy to install
Low consumption, high performance, high reliability
Excellent cost performance in area
Main application
Digital TV FTTH
Integration of three networks
FTTH PON
Status Indication
Red :                         >+2dBm
Green :                    +2~-16dBm
Orange :                  -16~-20dBm
Red :                       <-20dBm
Note: Users can set the order request

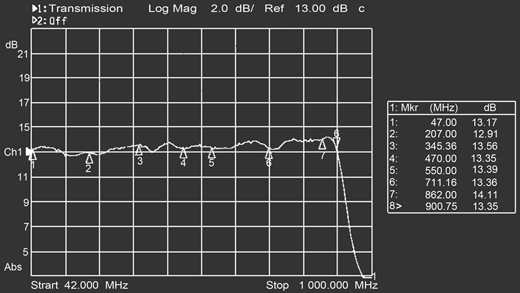

Flatness

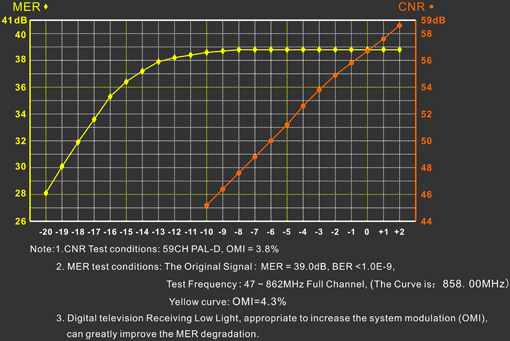

CNR, MER Degradattion table

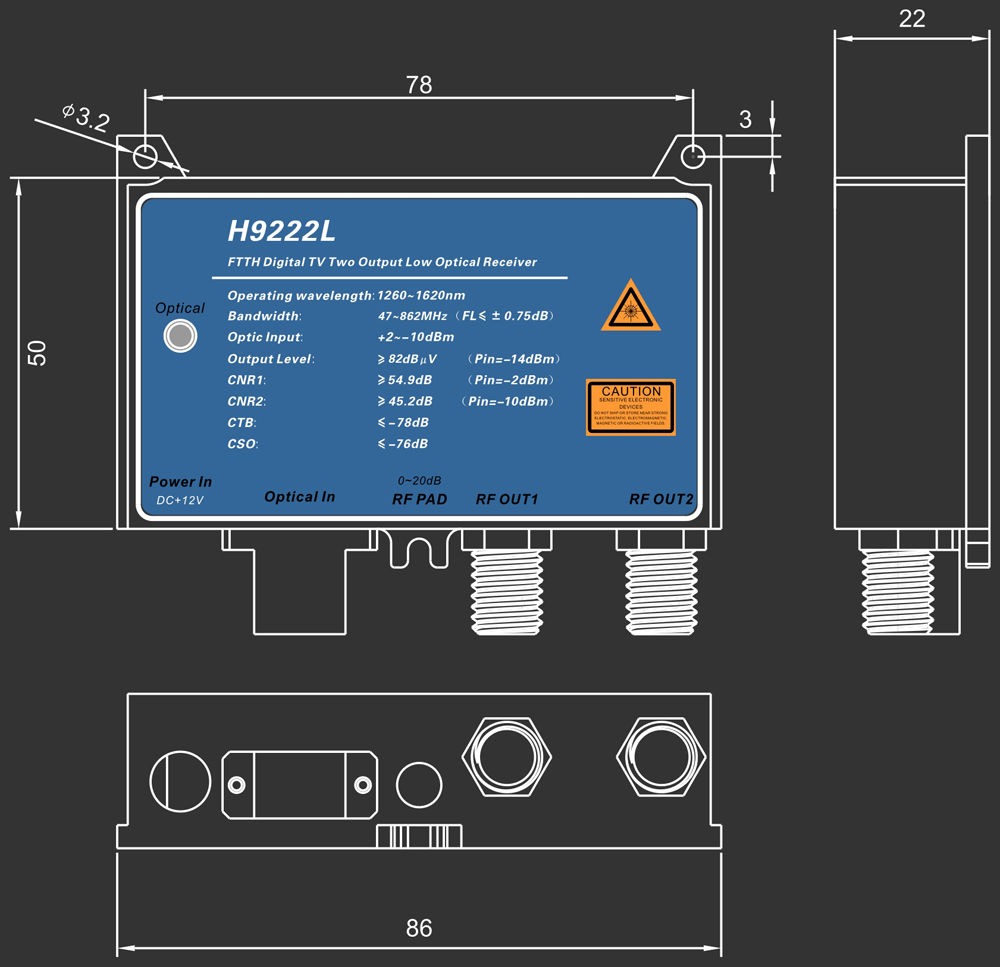

Dimensions

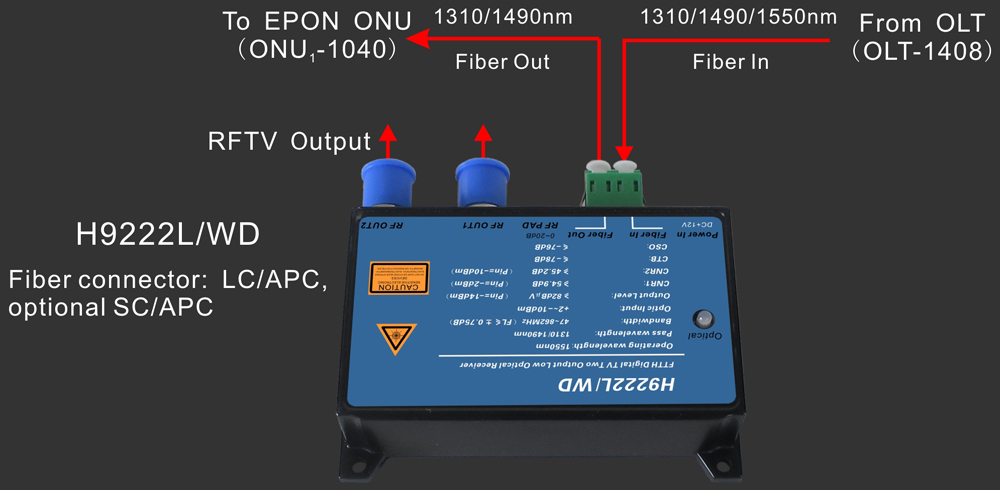

H9222L/WD The application in Single-fiber Three-wavelength
